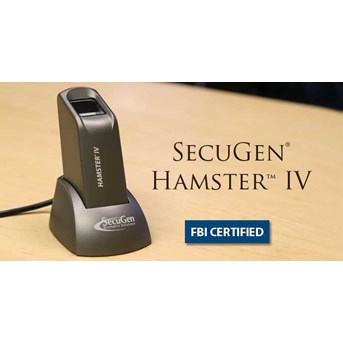

SecuGen Hamster IV

Features

- FBI Certified PIV Single Finger Capture Device Compliant - Listed on GSA FIPS 201 Approved Products List - High-performance, maintenance-free optical fingerprint sensor - Sensor resistant to scratches, impact, vibration and electrostatic shock - Auto-On™ (Automatic Finger Placement Detection) - Smart Capture™ (Automatic Image Adjustment to Accomodate Moist & Dry Fingers) - USB connection - Removable weighted stand - Compact, lightweight and portable - Integrated finger guide - Readily accessible for any finger

When used with SecuGen Software:

- Fast and accurate verification - Latent print image removal (does not accept prints left behind) - Encryption of fingerprint templates (with SecuGen Proprietary templates) - Fingerprint Device Recognition™ - Multi-Device Connection™



Name (Model) Hamster IV (HSDU04P™) Optical Fingerprint Sensor SecuGen SDU04P™ Image Resolution 508 DPI Image Size 258 x 336 pixels Platen Size 16.1 mm x 18.2 mm Effective Sensing Area 12.9 mm x 16.8 mm Fingerprint Capture Speed

0.2 ~ 0.8 second with Smart Capture™

Operating Temperature -20° ~ 65°C Operating Humidity 90% or less RH, noncondensing Dimensions / Weight 27 x 40 x 73 mm / 100 g (without stand) Supply Voltage / Max. Current 5 V DC / 150 mA False Acceptance, Rejection Rates Read our FAQs about FAR and FRR Interface USB 1.1 Full-Speed, USB 2.0 Hi-Speed Warranty One year limited Supported Standards FIPS 201 (PIV-071006), INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, Mobile ID FAP 20, NIST SP 800-76 Certifications

FCC, CE, KCC, RoHS, FBI PIV, GSA FIPS 201 APL

Supported Operating Systems

Windows 10 / 8.1 / 8 / 7
Windows Server 2012, 2008 R2
Android 3.1 and above, Java, Linux
